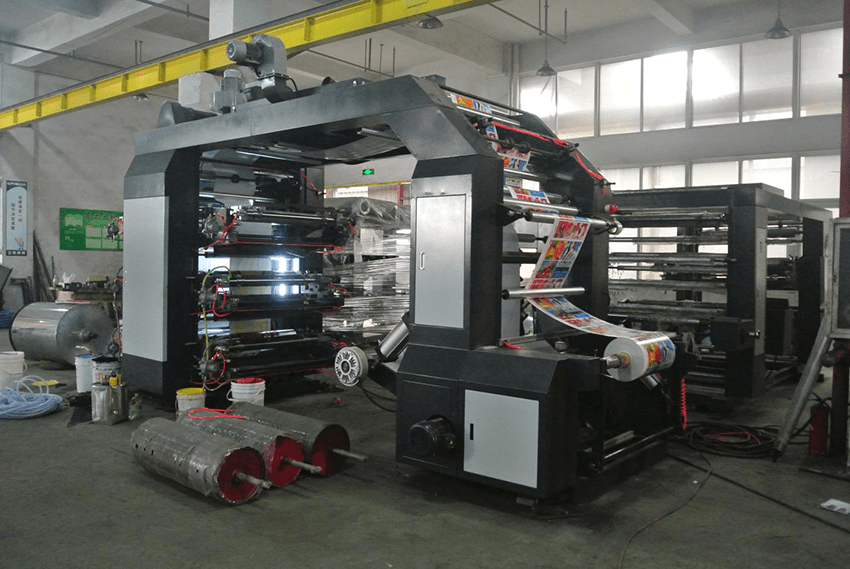

6 Color Stack Type

6 Color Stack Type Product Application:

1.Main motor:1pc(Taibang brand)
2.Ink operation motor: 1pc ( wanxin brand)
3.Inverter of main motor:1set (Delta brand)
4.Electrical parts:(Schneider)
5.bearing:NSK
6.Ceramicaniloxroller:1pc/color( Murata)

Download DOC

Main parmeter:

Model

YTB

Type

Stack

Standard Machine width

600mm 800mm 1000mm 1200mm

Material Feeding Width

200-1600mm, also can customized for more width material

Printing Width

160-1560mm, also can customized for more width material

Printing Length

Standard is 400mm,can customized  from 300-1000mm

Max Machine Speed

100- m/min

Printing Speed

10-80 m/min

Equip chamber doctor blade can reach 100m/min

Register precision

≤0.3mm

Thickness of plate

1.14mm 1.7mm 2.28mm 2.84mm 3.94mm can customized

Gear

1.5mm

Transmission

Synchronous Belt

Heating

Electricity Heating

Double tape thickness for stick plate

0.38mm 0.5mm can customized

Printing sections:

1. plate roller circumference: 300-1000mm, standard less than 400mm

2. print material: resin plate or rubber plate

3. Transmission between printing roller and anilox roller: Helical gears

4. printing chromatography: 360-degree rotation

5. adjustment method: By Manual (Automatic printing after adjust by manual, when start machine, no need register color again, the printing pressure and register all keep the same.)

6. Printing roller lifting system: pneumatic


PRINT SAMPLE:

Paper:



Film:


Pre-Sales One-stop Service

  * Inquiry and consulting support
  * Latest industry trends
  * More fit printing solution
  * Sample testing support
  * View our Factory
  * Suggest layout support
After-Sales Service
  * One year warranty
  * Machine test video before delivery
  * English Manual, Electric Diagram

  * Training how to install the machine,

     training how to use the machine

  * Engineers available to service machinery overseas
