Print quality is the lifeblood of any packaging printer. Color deviation, streaks, or misregistration lead to reprints, lost customers, and order penalties.
Many business owners believe quality depends only on skilled operators. But stable, repeatable quality comes from precise machine control of 5 critical elements:
Tension, Temperature, Pressure, Registration, Drying
This guide breaks down these 5 core elements and shows how the LISHENG King Series 8‑color 1200 CI flexo press locks in consistent quality.

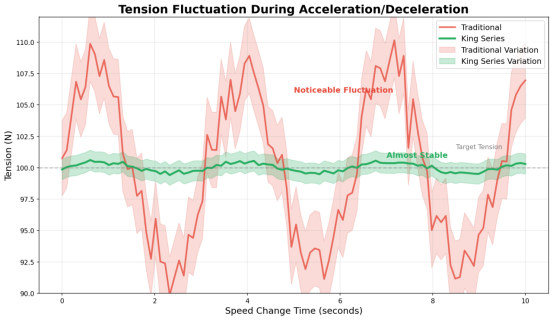

Element 1: Tension – No Stretch = Perfect Registration
Film substrates (PE, BOPP, PET) are sensitive to tension.
- Too high: film stretches → registration fails
- Too low: slack & wrinkling → poor printing
Traditional machine pain: Open‑loop or low‑precision tension control causes large fluctuations during speed changes.
King Series solution:
- 3‑stage independent servo tension control (unwind, print, rewind)
- Floating roller + low‑friction cylinder + encoder for real‑time closed‑loop adjustment
-
Tension range: 20–300N (supports 8μm ultra‑thin PET to 95g/m² paper)
Result: Constant tension during acceleration/deceleration; registration holds ±0.15mm.

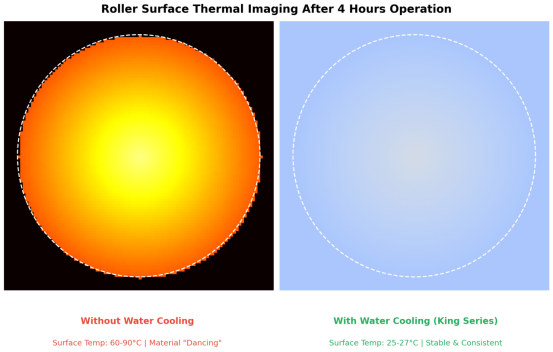

Element 2: Temperature – Steady Drum = Stable Material
The central impression (CI) drum is critical. Uneven heat causes film expansion and pattern distortion.
Traditional machine pain: No cooling or uneven cooling; drum heats up during long runs → material “dances”.
King Series solution:
- Built‑in water‑cooling system keeps drum temp within ±2°C of ambient
- 1600mm rigid drum; precision machining ≤0.01mm TIR; ≥200μm plating
-
24‑hour stable running with zero heat deformation
Result: No thermal stretching; consistent quality for long runs.

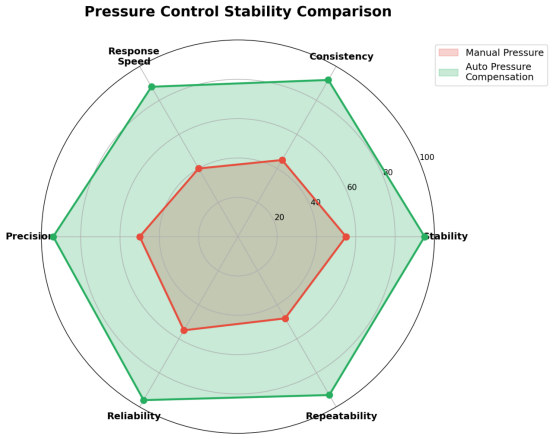

Element 3: Pressure – Uniform Ink = Perfect Tone
Pressure directly controls ink laydown.
- Too high: dot gain, blurred text
- Too low: weak color, gray tone
Traditional machine pain: Manual adjustment by feel; inconsistent between orders/operators.
King Series solution:
- Servo‑controlled plate/anilox engagement (4 units per color)
- Auto pressure compensation from stored job recipes
-
Pressure auto‑adjusts with press speed
Result: Uniform pressure across shifts and operators; fully repeatable quality.

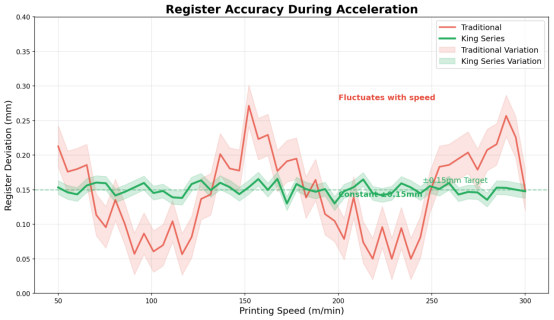

Element 4: Registration – Full Servo = No Drift
Registration is the most sensitive parameter. A 0.2mm shift causes visible ghosting.
Traditional machine pain: Gear backlash; accurate at low speed but drifts at high speed.
King Series solution:
- Delta servo motors drive each color station gearless
- High‑resolution encoders for millisecond correction
- Online adjustment: ±15mm lateral, ±10mm longitudinal
-
±0.15mm registration from 50 to 300m/min
Result: No speed‑related drift; drastically higher yield.
Element 5: Drying – The Key to Water-Based Ink
Water-based ink is eco-friendly but slow to dry. Incomplete drying causes blocking, odor, and high residue.
Traditional machine pain: Unstable airflow, uneven heat, air blowing onto plates → scumming.
King Series solution:
- Coanda effect air ducts with zone‑controlled airflow
- Electric heating up to 80°C; precise temperature control
- Secondary air return saves 30%+ energy
- Servo-driven guide rolls sync with main press
Result: Full drying at 300m/min; no blocking; meets food‑packaging residue standards.
5 Core Elements At a Glance
表格
| Element | Risks of Poor Control | Traditional Weakness | King Series Solution |
|---|---|---|---|
| Tension | Misregistration, wrinkles | Open loop, large fluctuation | 3‑stage servo + closed‑loop floating roller |
| Temperature | Stretch, distortion | No/uneven cooling | Water‑cooled large drum |
| Pressure | Dot gain, uneven color | Manual, inconsistent | Servo control + auto compensation |
| Registration | Ghosting, color shift | Gear lash, speed drift | Full servo, zero backlash |
| Drying | Blocking, odor, residue | Poor airflow, heat | Coanda air duct + recirculation |
How Quality Control Boosts Your Profit
- Scrap rate from 4% to 1.5%: ¥500,000 saved/year (on ¥20M output)
- Setup time reduced: ¥162,000 extra output/year
- ±0.15mm accuracy: Qualify for high‑margin cosmetic/medical jobs (50%–100% higher pricing)
FAQ
-
Q: What is the thinnest film you can print?
A: Down to 8μm PET; 25μm LDPE/HDPE.
-
Q: How is water-based ink drying?
A: Full drying at 300m/min with Coanda air system.
-
Q: Do you need regular calibration?
A: Stable long‑term; annual factory check recommended.
-
Q: Can I test with my materials?
A: Welcome to our Ruian factory for on-site trials.
Conclusion
Flexo print quality is not adjusted—it is controlled.
The King Series uses full servo drive, water-cooled CI drum, Coanda drying, and servo pressure control to lock in tension, temperature, pressure, registration, and drying.
Stable, reliable, repeatable. That’s what a professional press should deliver.
