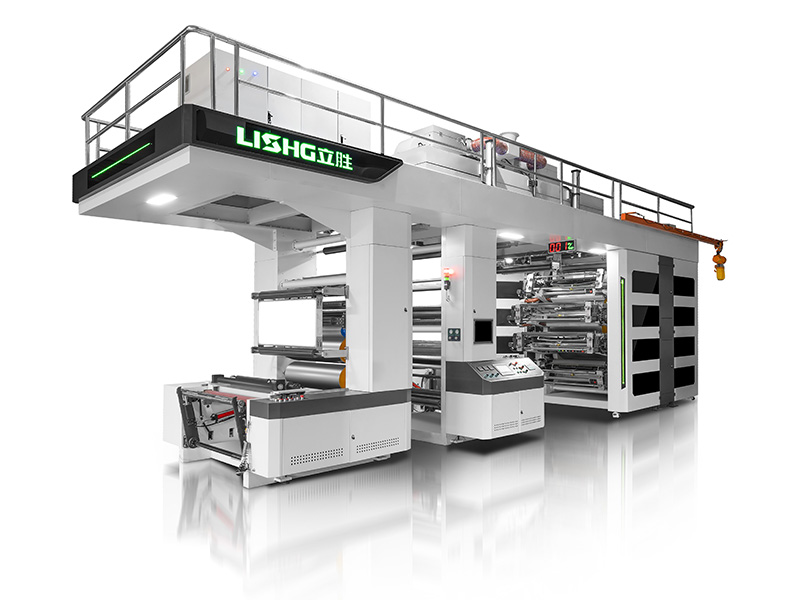

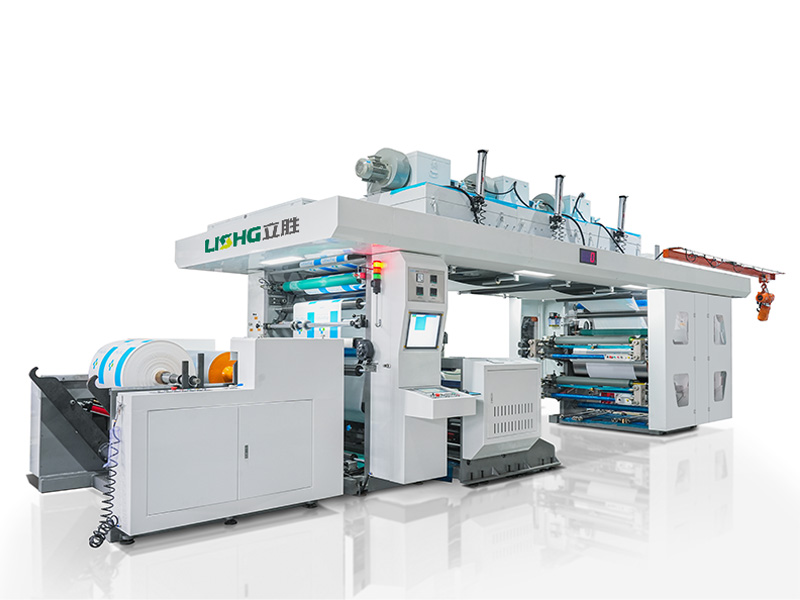

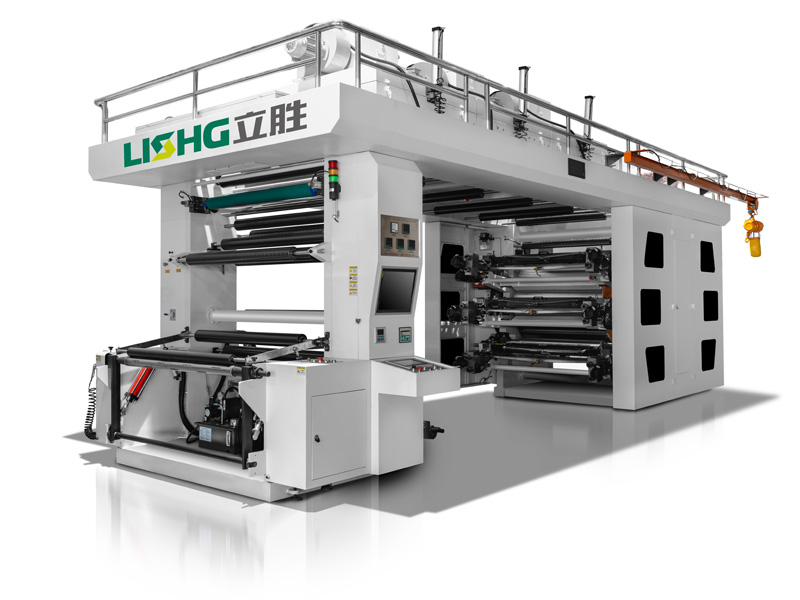

8 Color Central Impression Flexographic Printing Machine

8 Color Central Impression Flexographic Printing Machine Product Application:

Max width of material: 1200mm
Max printing width: 1160mm
Suitable material: paper, films, non-woven, fabric, foils
Printingcolor: 8colors
Max printing speed: 250m/min
Machine weight: 17000kg
Machine dimension:(L*w*H)11*3.6*4.36m
Machinepower: 380V, 3PH, 50HZ

Download DOC

8 Color Central Impression Flexographic Printing  Machine



Frame and web running:
1. The frame is made of alloy cast iron with high strength and lower stress. It is casted by resin sand process and treated by vibration aging.
2. Integral type guide roller structure.
3. Assembled modularization in design.
4. Frame thickness 100mm
5. Guide roller Φ100mm (Surface anodic oxidation treatment)


Main parameter:

Model

YTD-8color

Material feeding width

600mm 800mm 1000mm 1200mm 1400mm

Max Printing Width

560mm 760mm 960mm 1160mm 1360mm

Colors

8colors

Material

Pe.pet.bopp.pvc.nylon.non-woven.breathable film

Thickness of plate

1.14mm.1.7mm 2.28mm.2.84mm. 3.94mm

Customized is available

Printing length

Standard is 400mm,

Customized is available from380-800mm

Maximumprintingspeed

250m/min

Register precision

longitudinal registration±0.15mm

Transversal registration±0.15mm

Structure type

Central impression(central drum)

Gear module

1.5mm

Heating method

Electricity heating

Max. oven temp.

Max. 80℃(room temp. 20℃)

Unwinder/rewinder paper

core 3"

Max.unwinder/rewinder dia.

1000mm

Suitable Ink

Water based ink / Solvent ink




Printing sample



Pre-Sales One-stop Service

  * Inquiry and consulting support
  * Latest industry trends
  * More fit printing solution
  * Sample testing support
  * View our Factory
  * Suggest layout support
After-Sales Service
  * One year warranty
  * Machine test video before delivery
  * English Manual, Electric Diagram

  * Training how to install the machine,

     training how to use the machine

  * Engineers available to service machinery overseas
