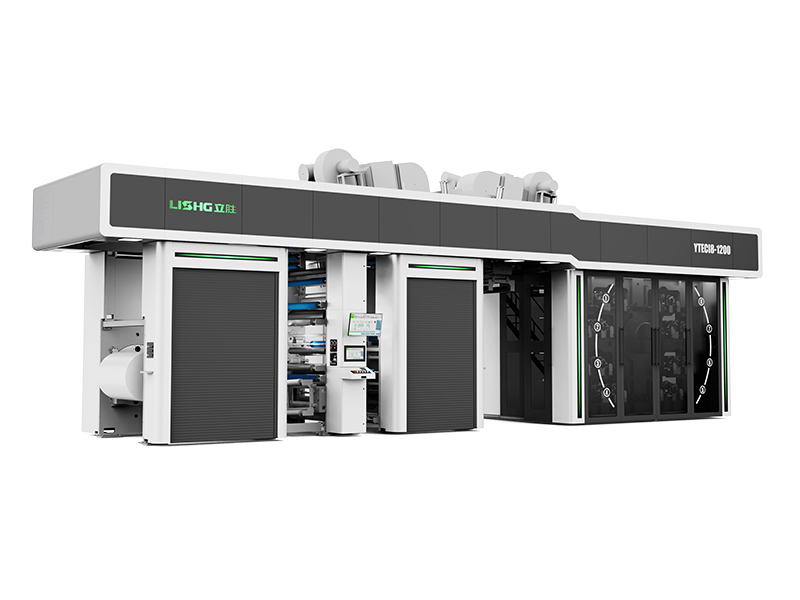

Full Servo Gearless 8 Color Machine

Full Servo Gearless 8 Color Machine Product Application:

Max width of material: 1200mm
Printing color: 8colors
Max printing width: 1160mm
Machinery mechanical speed: 450m/min
Max. Speed of Material Printing: 350-400m/min, according to different material and print design
Material: Paper, PE, PET, BOPP, PVC
Max. Printing Length (Repeat): 400mm-800mm
Machine power: 380V, 3PH, 50HZ/60HZ

Download DOC

Contact Now

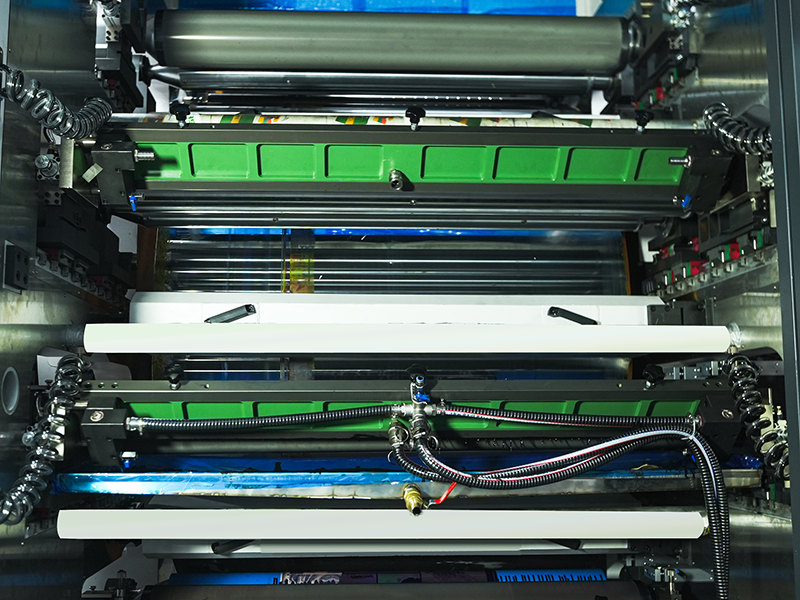

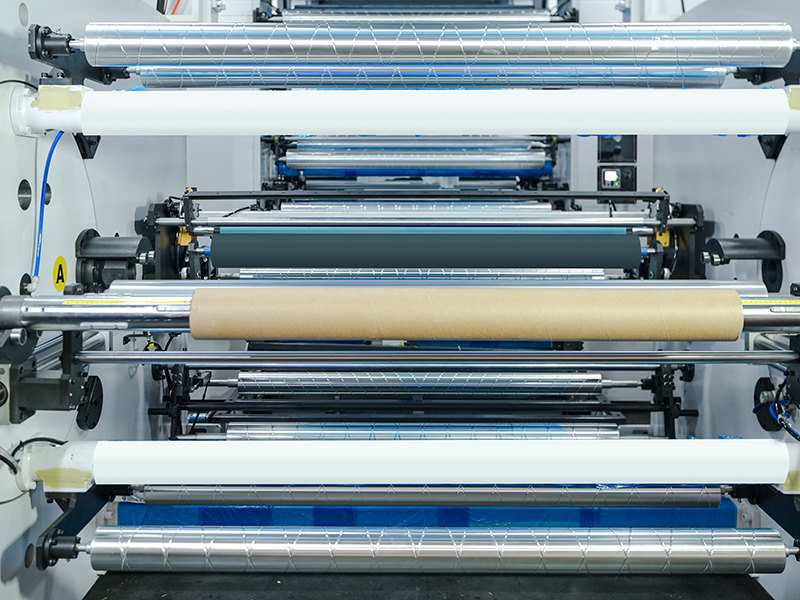

The gearless sleeve flexo printing machine adopts an advanced full servo system. Compared with traditional gear transmission printing machines, it is faster, realizes fully automatic color registration, and has lower maintenance costs.

Machine Features:

1. Non stop unwind+rewind

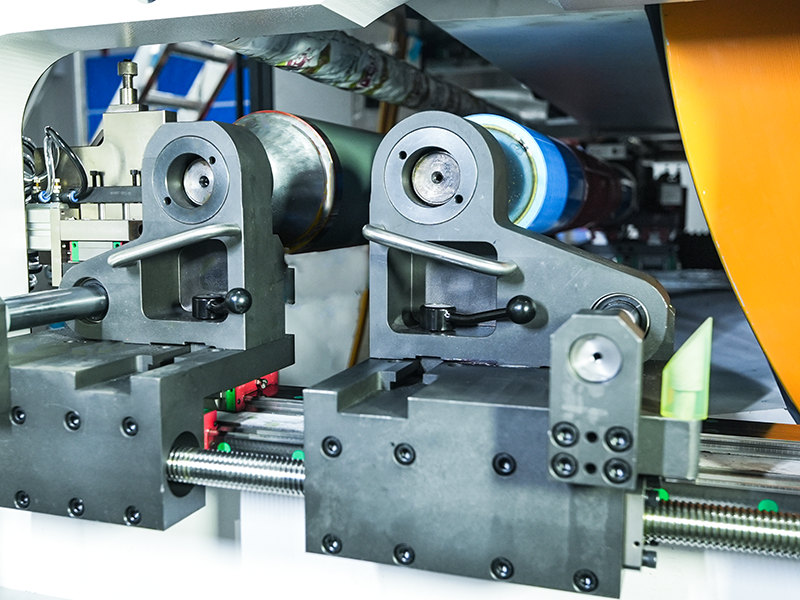

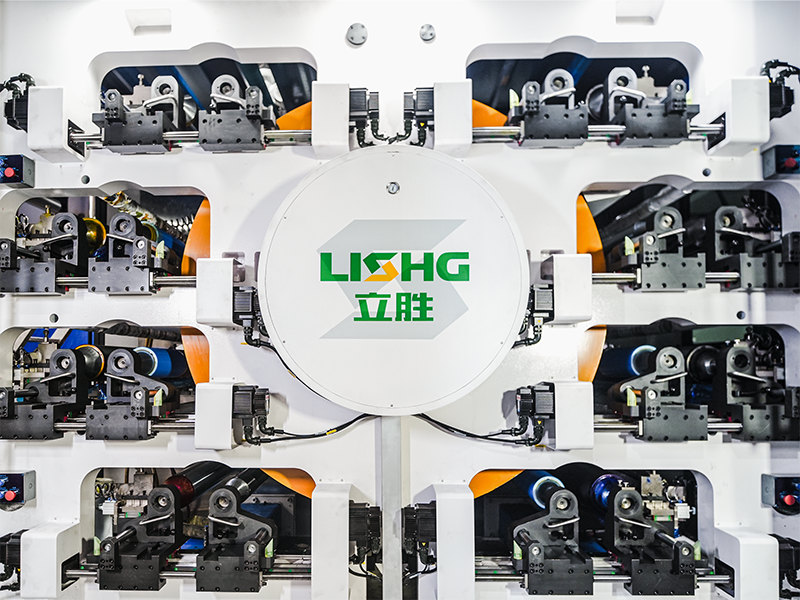

2. The gearless sleeve full servo printing system

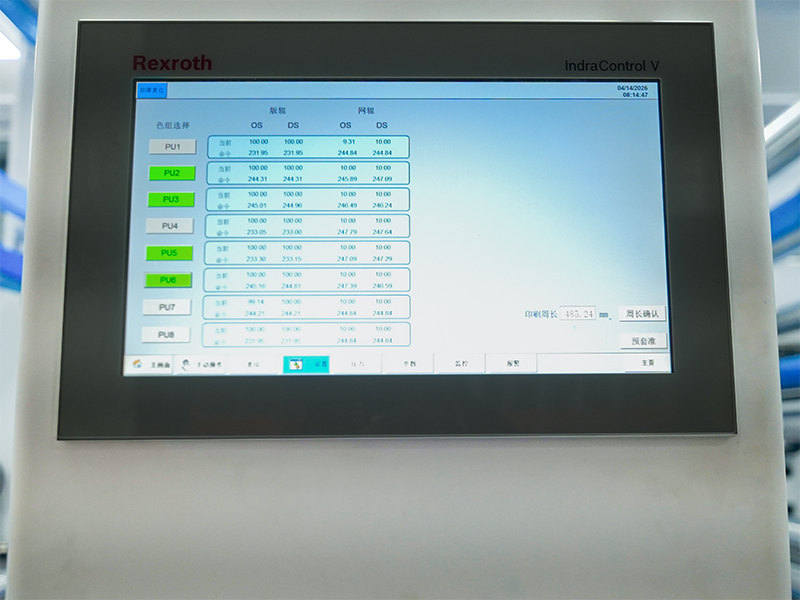

3. Fully automatic color registration

4. Fully automatic frequency conversion control drying system

Model	YTE-81200mm
Max Width Of Material	1200mm
Printing color	8 colors
Max. Width of Printing	1160mm
Machinery mechanical speed	450m/min
Max. Speed of Material Printing	350-500m/min, according to different material and print design
Material	Paper,PE,PET,BOPP,PVC
Max. Printing Length (Repeat)	400mm-800mm
Printing Cylinder	Sleeve type
Ceramic Anilox Roller	Sleeve type
Max. Unwind/ Rewind Dia	Φ800mm
Adhesive Tape Thickness	0.38mm
Thickness of Plate	1.7mm, 1.14mm, 2.84mm, 2.28mm Or as your request
Registration Precision	±0.08mm
Heating Method	Electric heating
Ink	Water base ink or solvent ink
Power	Voltage:380V, 3PH, 50HZ/60HZ
